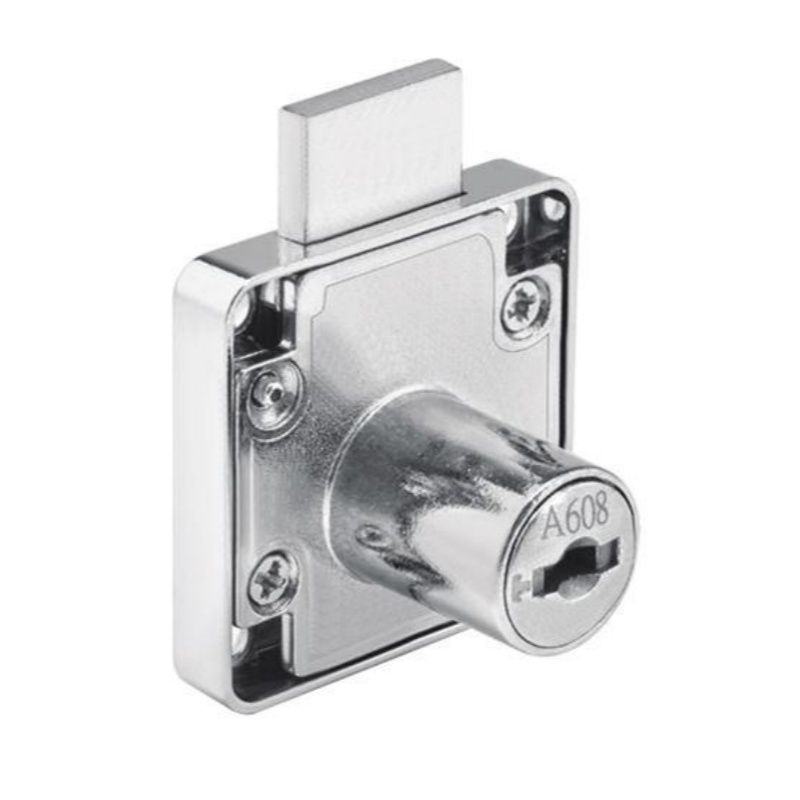

Two-Level Drawer Lock K6139-22
- Description
Product Overview
- Item No.: K6139-22
- Product Name: Two-Level – Drawer Lock
- Material: Zinc Alloy
- Key Type: Computer Key
- Cylinder Specification: D18 x L22mm

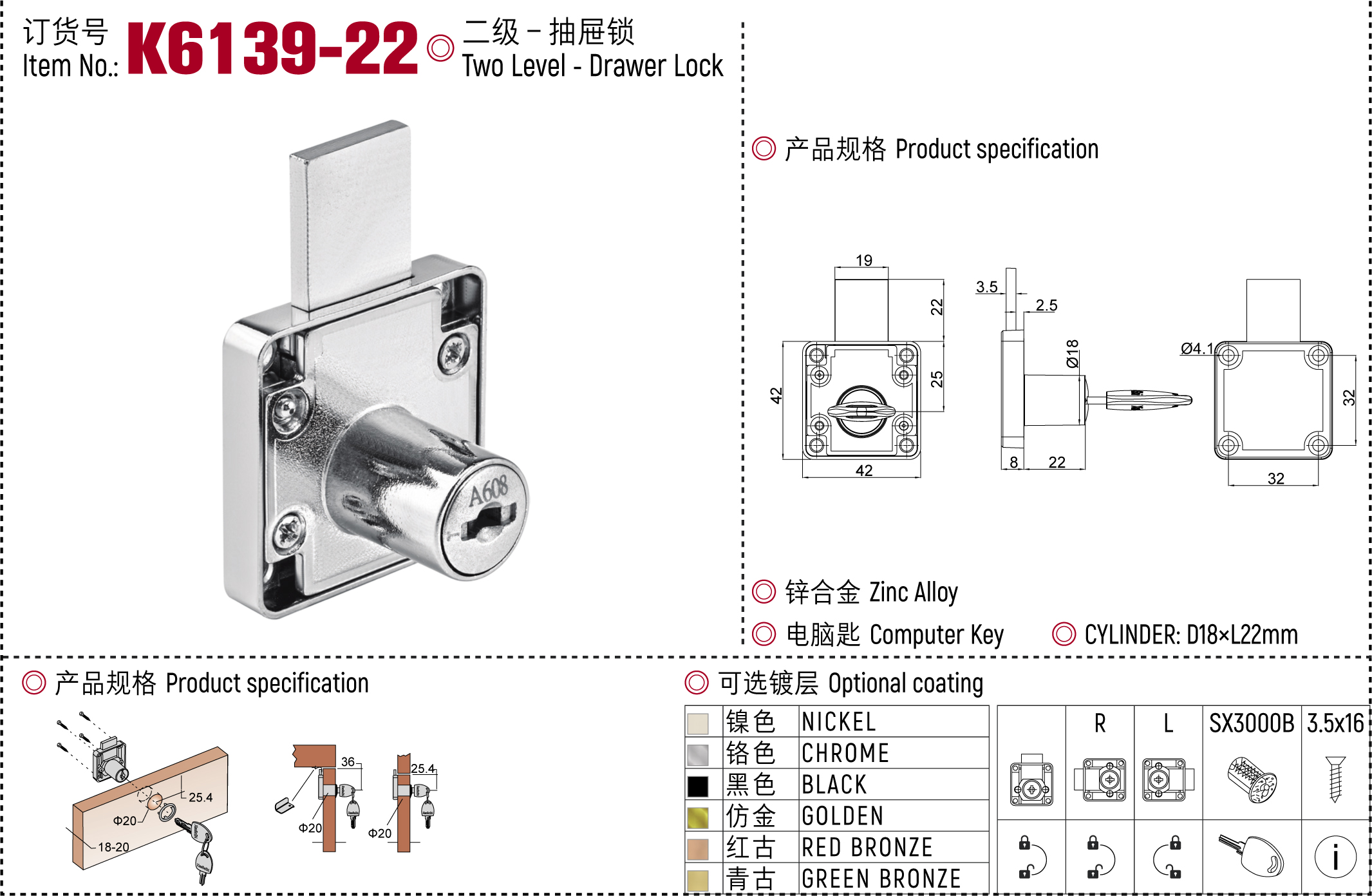

Key Features & Specifications
- Design: A two-level drawer lock mechanism featuring a square base plate with a protruding rectangular bolt.
- Dimensions: The main body measures 42mm x 42mm. The bolt extends 22mm from the base.
- Mounting: Requires a 20mm diameter hole for installation. The recommended mounting depth is 18-20mm.
- Hardware: Includes mounting screws (SX3000B, 3.5 x 16mm).
Available Finishes (Optional Coating)
The product is available in a variety of finishes to suit different aesthetics:
- Nickel
- Chrome
- Black
- Golden
- Red Bronze
- Green Bronze
